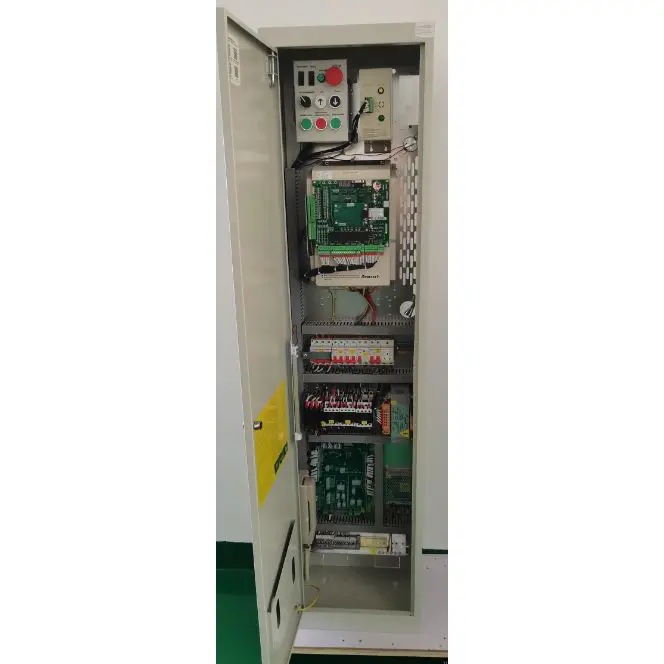

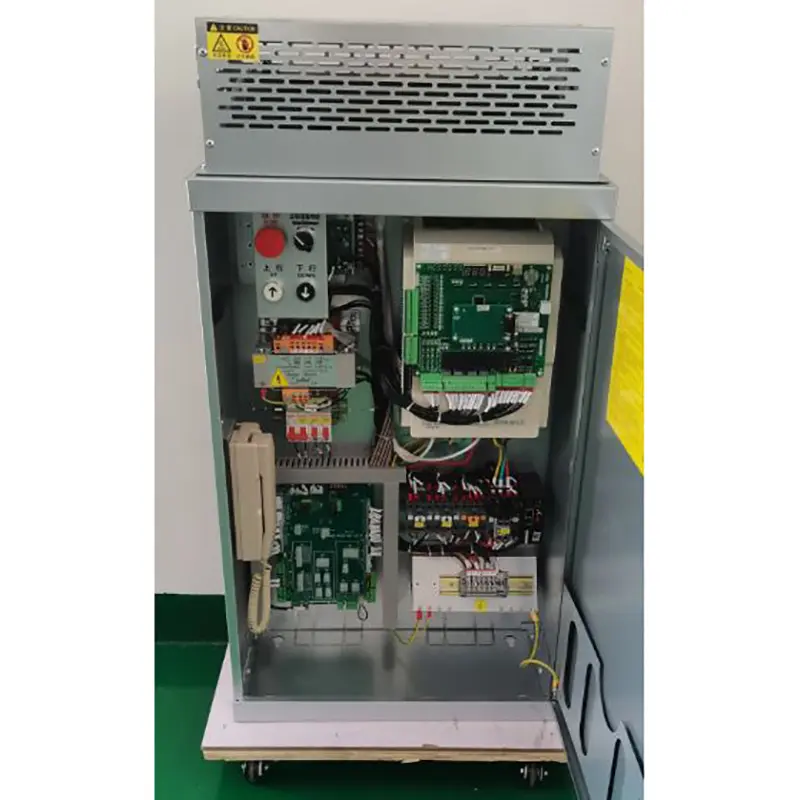

With stable and advanced technical support, combined with rich industry experience, the controller precisely regulates the movement of the elevator, ensuring smooth acceleration and deceleration. Supported by high quality, competitive pricing, and efficient after-sales service, our solutions serve customers globally.
Our diverse product range is engineered to meet varying customer requirements. It is suitable not only for new elevator installations but also for modernization and maintenance projects. To learn more about our product specifications, please refer to the technical parameters below.
| Standard | EN81-1:1998 +A3 2009, GB7588-2003 |
| Working temperature | -10℃ — 45℃ |
| Installation place | Residential building, working buildings, Hotels etc |
| Dimension(WxDxH) | 600mmx1050mmx280mm |
| Installation mode | Floor mounted or wall mounted |
| Controller power | 4.6KW – 55 KW |
| Supply power | Three phases 380v (220v) 50/60HZ, or Single phase 220V 50/60HZ |
| Suitable brake | DC 220V, DC 110V, AC220 |
| Resistance box | Built in |
| Cabinet material | Zinc painted |
| Cabinet color | Gray, black, or to be customized |
| Contactor | Schneider or Fuji series |
| Switch power | 100W-200W |
| Transformer | 700W-2000W |
| Auto rescue device | As per requirement |
| Standard | EN81-1:1998 +A3 2009, GB7588-2003 |
| Working temperature | -10℃ — 45℃ |
| Installation place | Villa lift, apartment, private building |
| Dimension(WxDxH) | 380mmx1400mmx280mm |
| Installation mode | Floor mounted or wall mounted |
| Controller power | 4.5KW – 30 KW |
| Supply power | Three phases 380v (220v) 50/60HZ, or Single phase 220V 50/60HZ |
| Suitable brake | DC 220V, DC 110V, AC220 |
| Resistance box | External |
| Cabin material | Zinc painted or stainless steel |
| Cabinet color | Gray, black, or to be customized |
| Contactor | Schneider or Fuji series |
| Switch power | 100W-200W |
| Transformer | 700W-2000W according to requirement |
| Auto rescue device | Standard |
