Wholesale Escalator recidential escalator commercial escalator Supplier, Factories

Step Width(mm) Speed(m/s) Capacity(p/h) Vertical Rise(mm) Net width of Shaft Size(mm) θ=30° θ=35°
Net Weight(KN) Shaft clearance(mm) Net Weight(KN) Shaft clearance(mm)
600 0.5 4750 3000 1260 57 9961 54 9189
3500 60 10827 57 9904
4000 64 11693 60 10618
4500 68 12559 64 11332
5000 71 13425 67 12046
5500 75 14291 70 12706
6000 79 15157 73 13474
800 6750 3000 1460 59 9961 56 9189
3500 63 10827 60 9904
4000 67 11693 63 10618
4500 71 12559 66 11332
5000 74 13425 70 12046
5500 82 14291 73 12706
6000 86 15157 76 13474
1000 9000 3000 1660 59 9961 60 9189
3500 63 10827 64 9904
4000 67 11693 67 10618
4500 71 12559 71 11332
5000 74 13425 74 12046
5500 82 14291 82 12706
6000 86 15157 85 13474

Product Description

Product Features

The escalator, like a silent bridge, connects the different floors. With its powerful transport capacity, it welcomes passengers who come up and go down. The orderly operation of the steps, emitting a slight and regular sound, seems to tell the story of science and technology and innovation. It is not only a means of transportation, but also a beautiful landscape in modern architecture.

Designing and developing escalators to meet various requirements from customers, two types of escalators are supplied: commercial type escalators and heavy duty type escalators.

  • The escalators apply advanced micro computer control system technology. The fault detection function is further refined, thus greatly improving running safety.
  • Skirting panel brush can prevent outside materials coming into the gap between steps and skirting panel.
  • In case of emergency malfunction of the escalator, press the emergency stop button to immediately stop the escalator to avoid more accidents.
  • The truss adopts robotic welding technology, which greatly enhances the manufacturing process, and it is sturdy and durable, beautiful and elegant.
  • Enhanced stylish and beautiful stainless handrail bracket suitable for large lifting height.

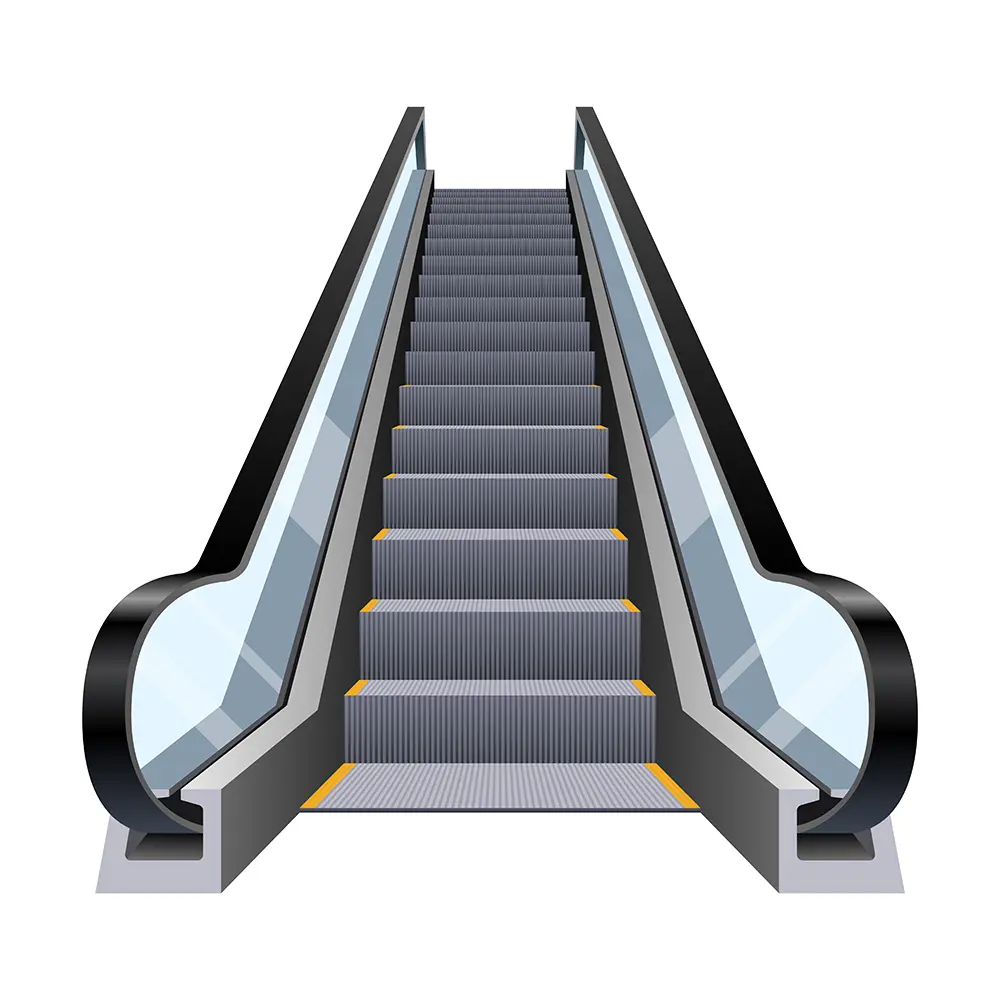

Escalator general view

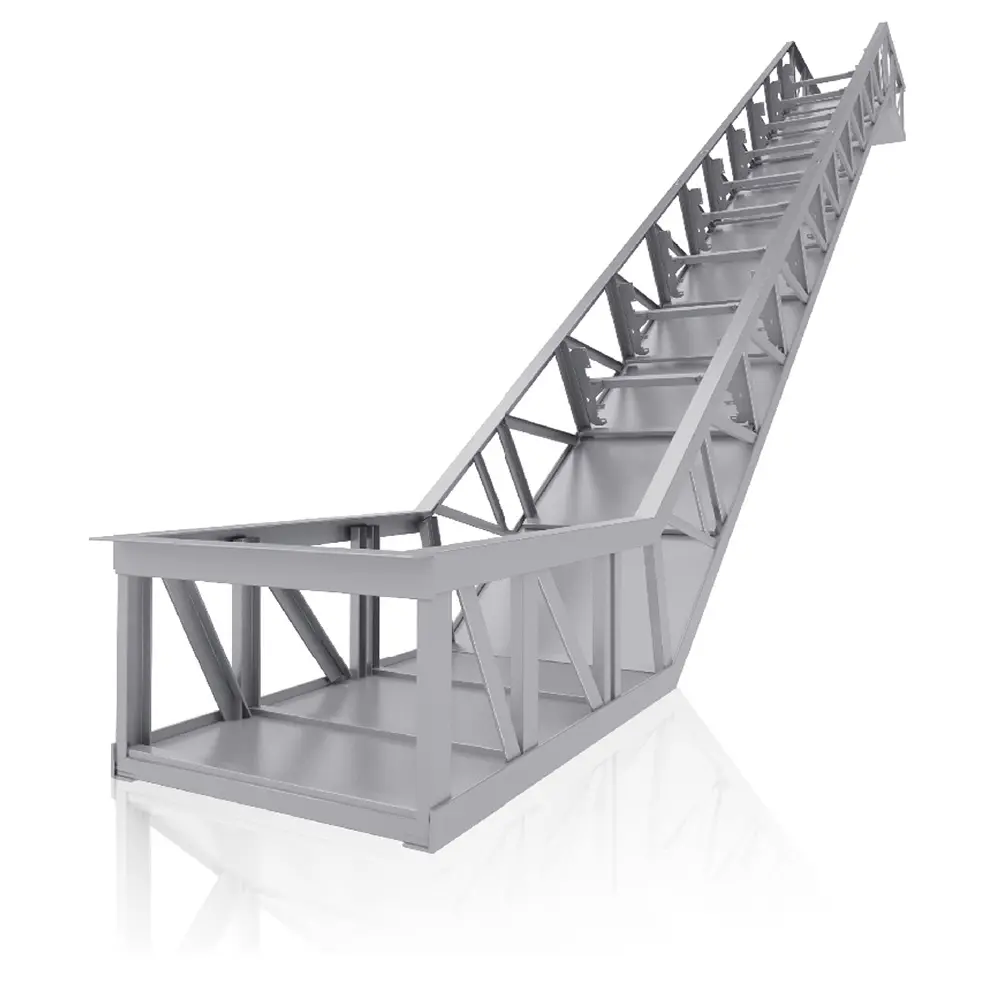

Escalator truss structure

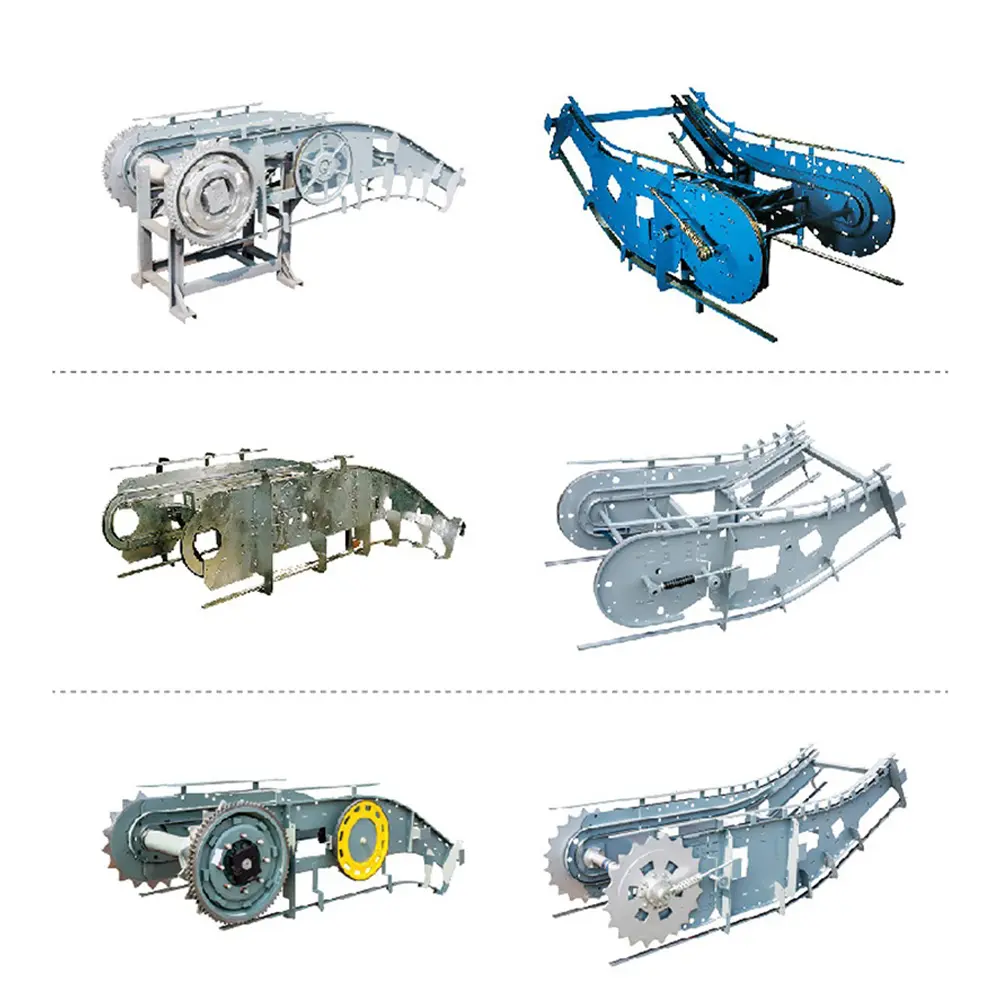

Escalator up and down components

Features

  • Continuous transportation: It can transport a large number of passengers without interruption and improve the efficiency of personnel flow.
  • Adapt to different slopes: different angles can be designed according to actual needs.
  • Diverse appearance design: there are a variety of shapes and decorative styles, which can be integrated with different architectural environments.

Advantages

  • Convenience: passengers do not need to climb stairs, especially suitable for shopping malls, subway stations, airports and other crowded places.
  • Efficiency: Fast transport of passengers, reduce waiting time.
  • Safety: Equipped with a variety of safety devices, such as emergency stop button, armrest speed monitoring, etc., to ensure passenger safety.

In terms of technology, modern escalators continue to innovate, such as the use of more energy-efficient drive systems, improve operating efficiency while reducing energy consumption; Advanced control systems enable more accurate operation and fault diagnosis; There are also some escalators with intelligent sensing function, can automatically adjust the running speed according to the passenger flow. In short, escalators play an important role in modern public transportation and architecture, bringing great convenience to people's travel.

Technical Specifications

Step Width (mm) Speed (m/s) Capacity (p/h) Vertical Rise (mm) Net width of Shaft Size (mm) θ = 30° θ = 35°
Net Weight (KN) Shaft clearance (mm) Net Weight (KN) Shaft clearance (mm)
600 0.5 4750 3000 1260 57 9961 54 9189
3500 60 10827 57 9904
4000 64 11693 60 10618
4500 68 12559 64 11332
5000 71 13425 67 12046
5500 75 14291 70 12706
6000 79 15157 73 13474
800 6750 3000 1460 59 9961 56 9189
3500 63 10827 60 9904
4000 67 11693 63 10618
4500 71 12559 66 11332
5000 74 13425 70 12046
5500 82 14291 73 12706
6000 86 15157 76 13474
1000 9000 3000 1660 59 9961 60 9189
3500 63 10827 64 9904
4000 67 11693 67 10618
4500 71 12559 71 11332
5000 74 13425 74 12046
5500 82 14291 82 12706
6000 86 15157 85 13474

Frequently Asked Questions

What types of escalators are available?
Two main types of escalators are supplied to meet various client requirements: commercial type escalators and heavy duty type escalators.
What safety systems are incorporated in these escalators?
The escalators are equipped with advanced microcomputer control systems for refined fault detection, skirting panel brushes to prevent debris entry, emergency stop buttons, and handrail speed monitoring systems to maximize passenger safety.
What are the benefits of the robotic welding technology used in the truss?
The truss utilizes advanced robotic welding technology, which greatly enhances the overall manufacturing precision. This structure makes the escalators sturdy, durable, elegant, and highly reliable.
How do modern escalators improve energy efficiency?
Modern escalators implement energy-efficient drive systems to lower energy consumption, combined with intelligent sensing functions that automatically adjust operational speed based on real-time passenger flow.
Can the escalators be adapted to different architectural layouts?
Yes. The escalators can be customized with different slope angles (e.g., 30° and 35°), dimensions, and diverse decorative appearance designs to integrate seamlessly with various environments like shopping malls, transit stations, and airports.
